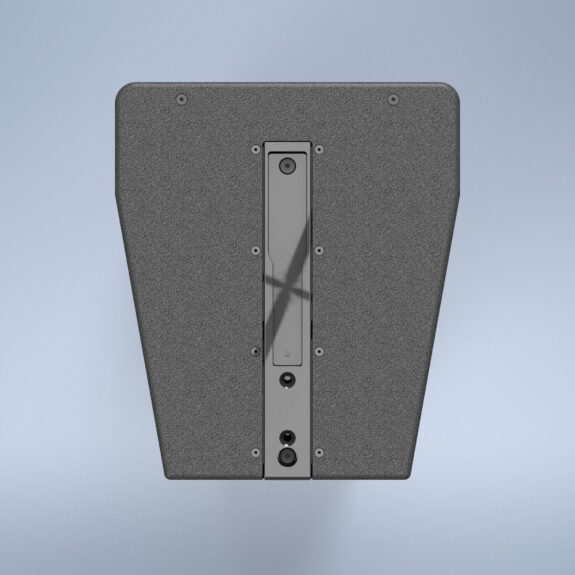

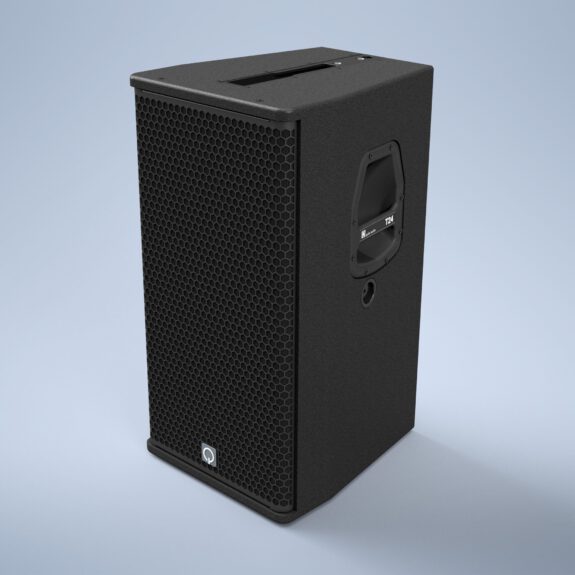

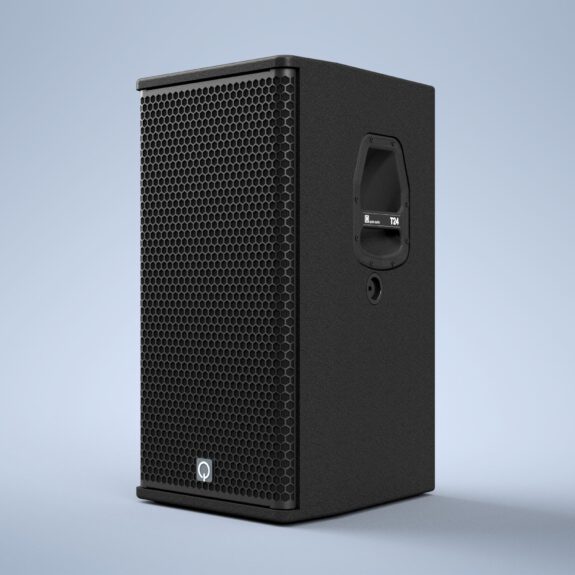

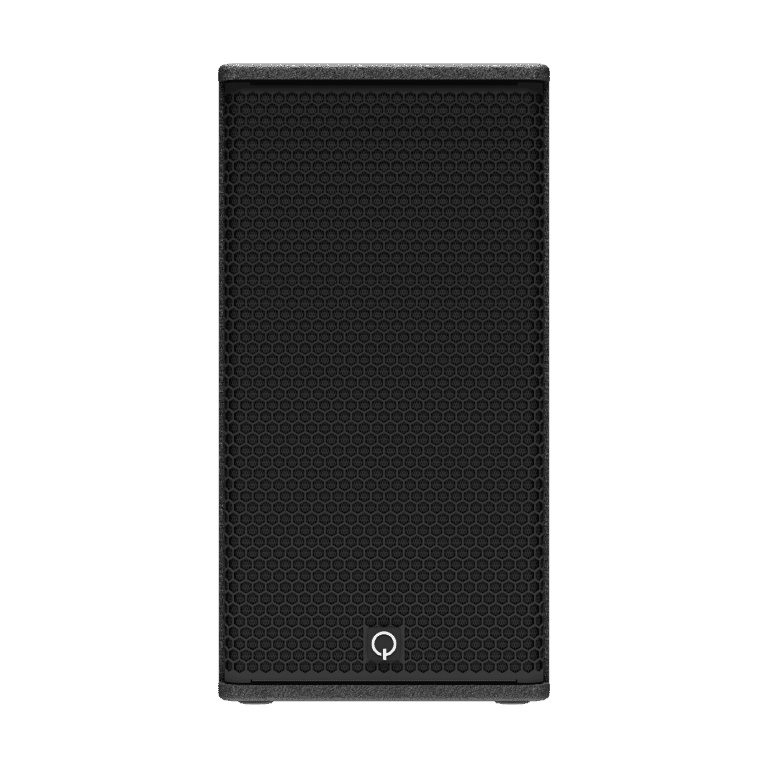

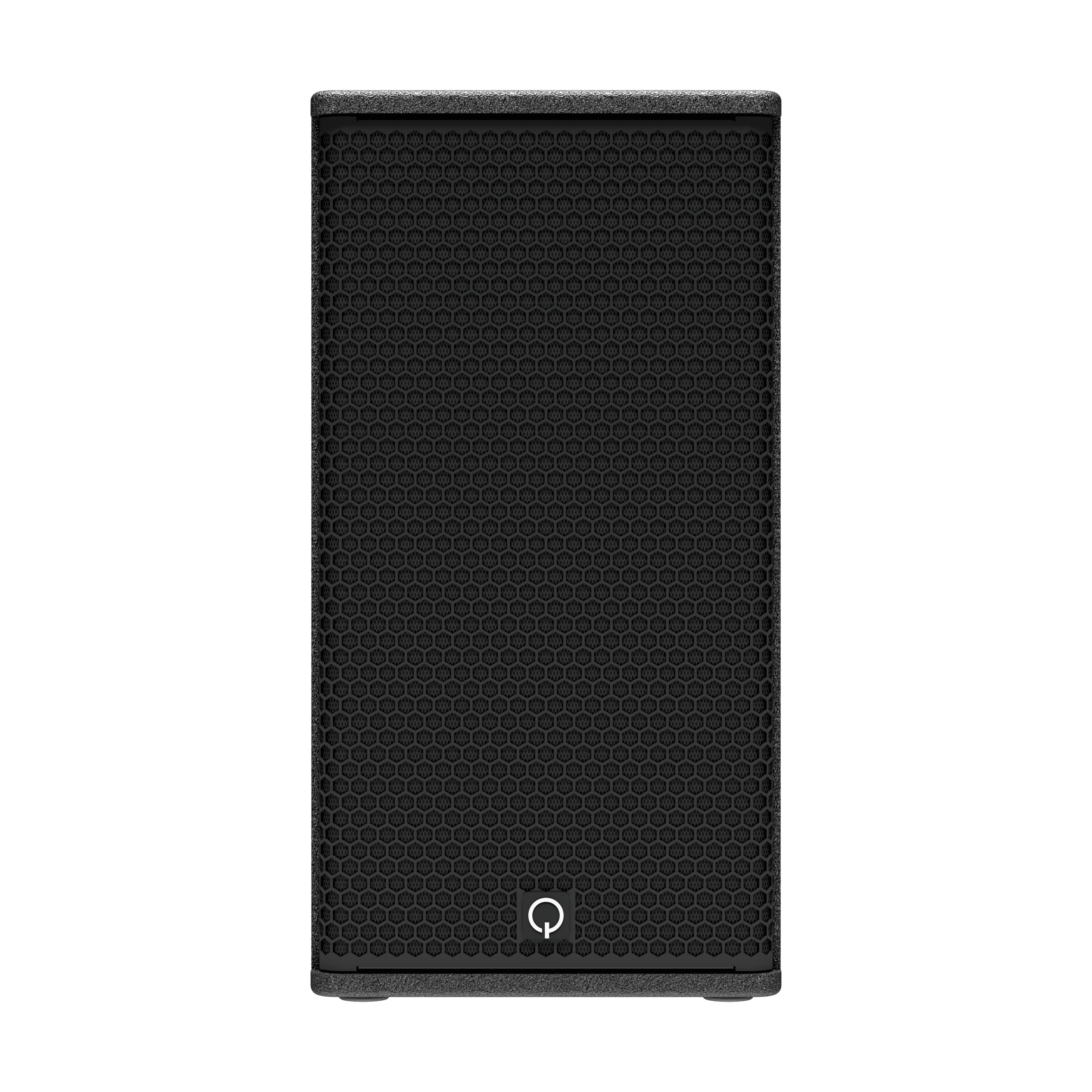

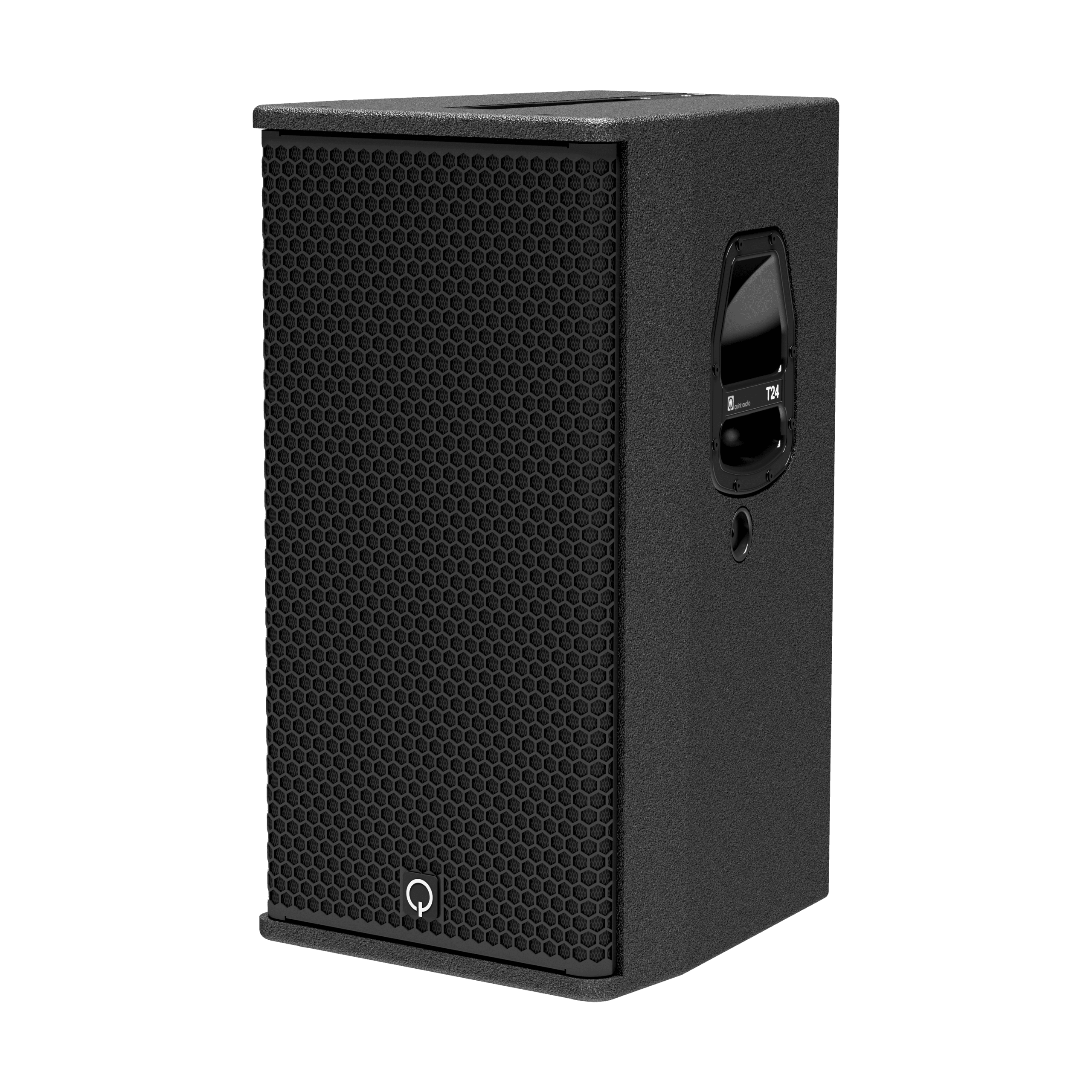

T24

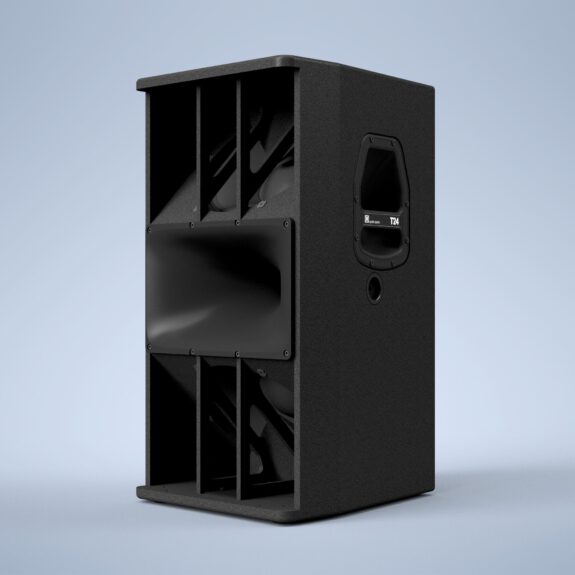

The Quint Audio T24 is a 2×12″/4″/2.5″ 2-way bi-amped high performance speaker system

Specifications
Specifications
Description

The Quint Audio T24 offers high-quality sound reproduction in near- and mid-field applications. It is a very compact high power density loudspeaker that is perfect for situations where a large PA system, such as a line array, is considered too much and a small single point source too small.

The T24 combines powerful amplification, great dynamics and natural reproduction of complex audio sources. This results in high speech intelligibility and warm vocals on top of any live or electronic music source as well.

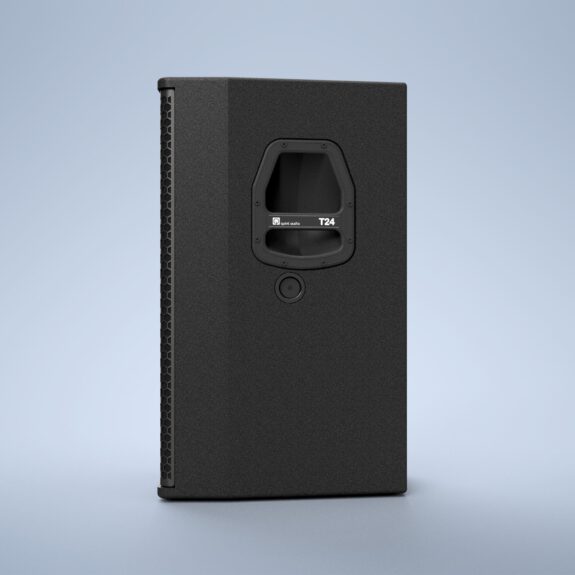

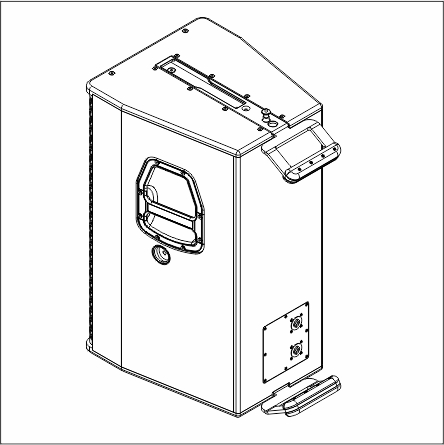

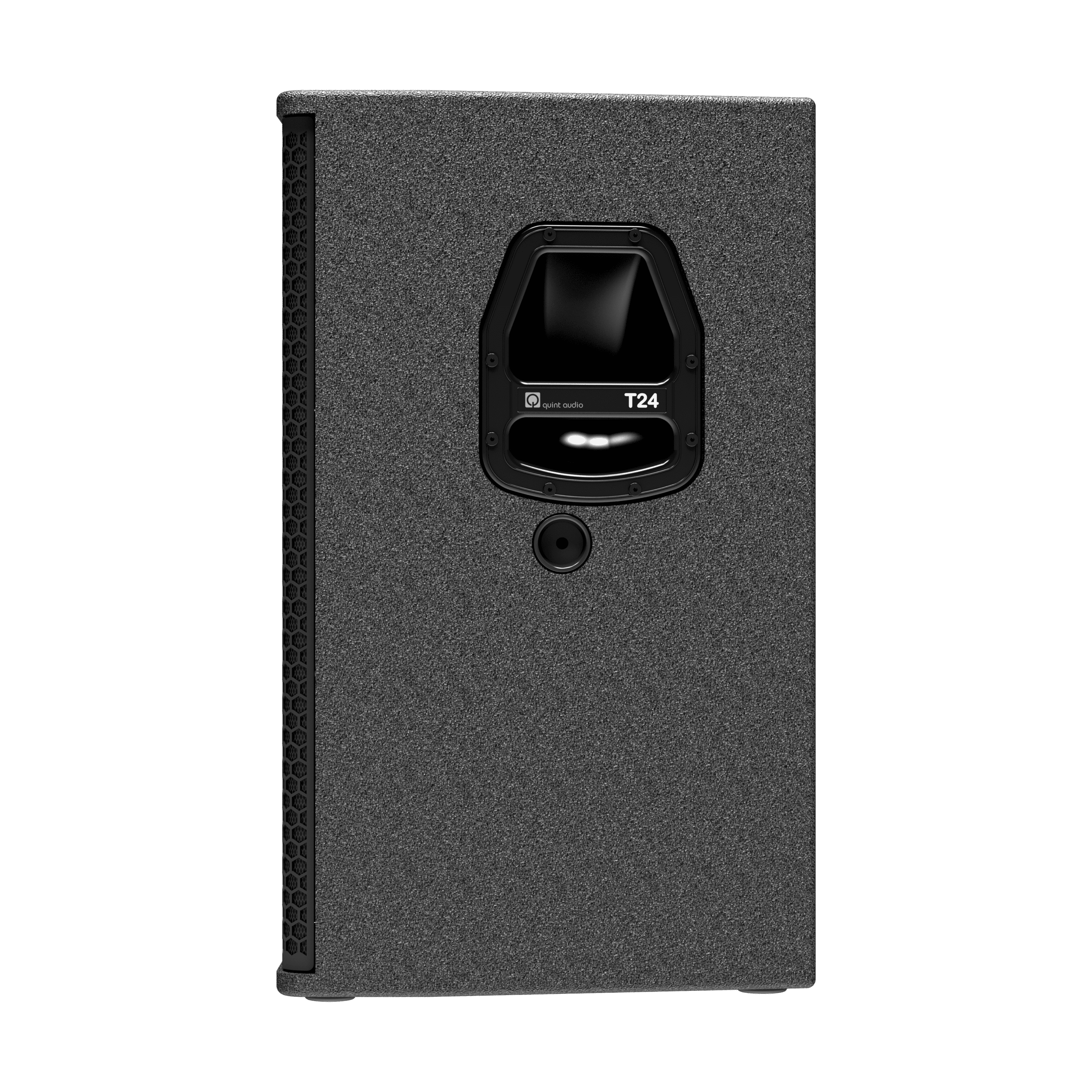

The T24 is easy to handle due to its built-in handles and its light weight. It comes with quick lock rigging to which all kinds of rigging and installation accessories can be safely attached and detached tool-free.

An additional subwoofer enhances the T24’s performance, turning it into a powerful PA system that’s perfect for amplifying any band or orchestra during live performances.


Application area

FOH Top
Full Range Loudspeaker

Live Theatre
Live Music
Mechanical Music
Speech
Vocals


Specifications
T24
high performance point source touring top
2-channel DSP control
2x12"/4"/2.5"
5 Ohms
143dB / 100Hz-20kHz
126dB / 100Hz-20kHz
116dB
106dB
80° x 50°

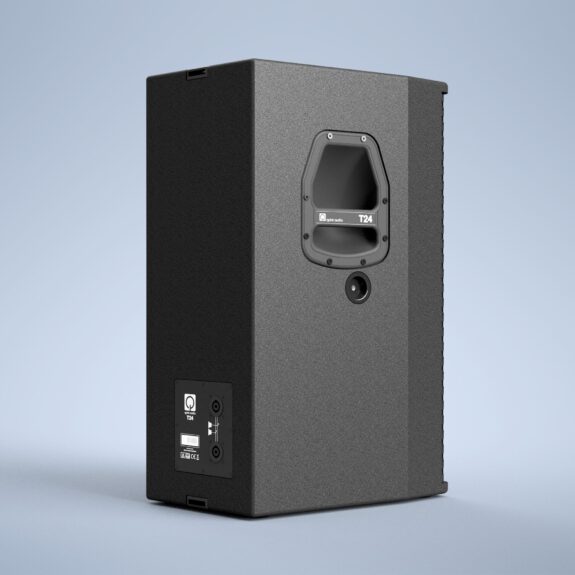

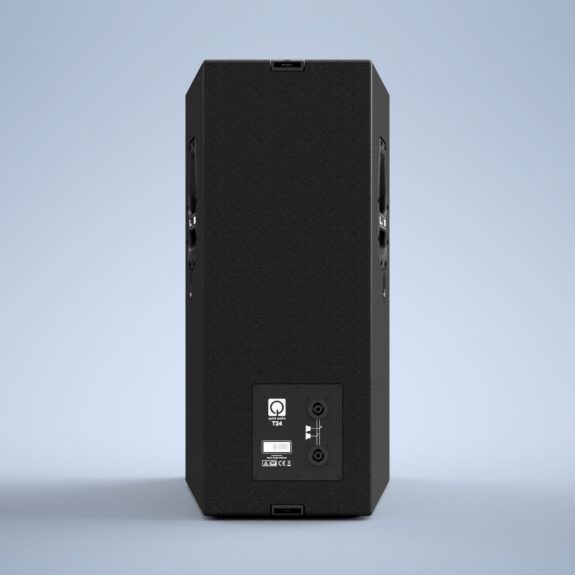

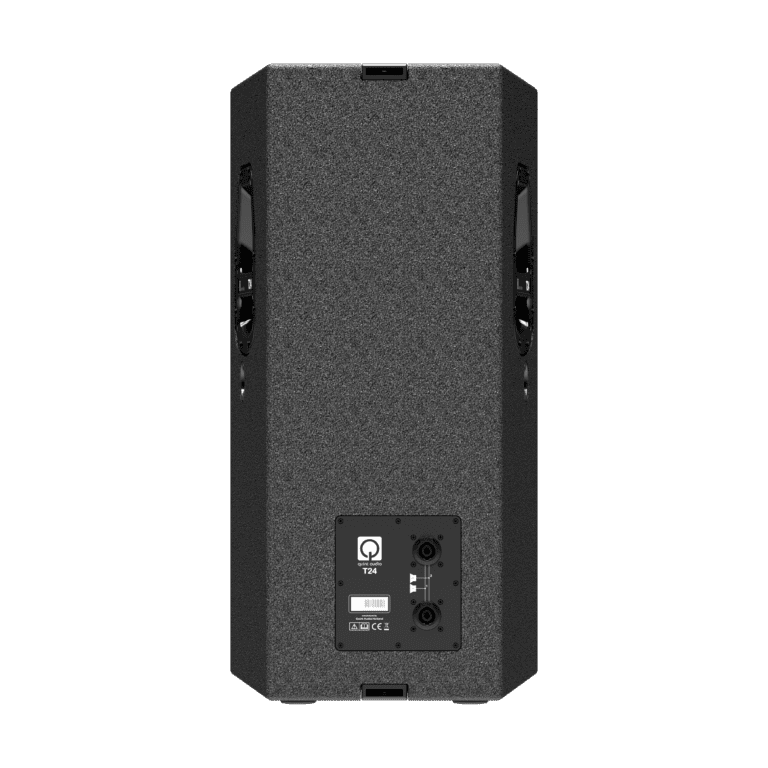

2x SpeakOn-4
29 kgs
360 x 695 x 415mm

Advised electronics

P9 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

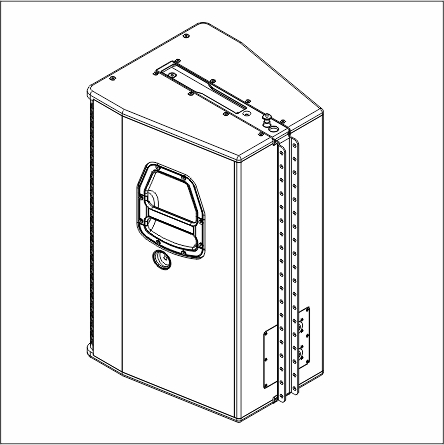

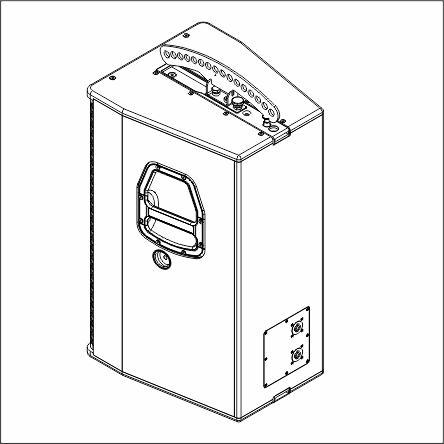

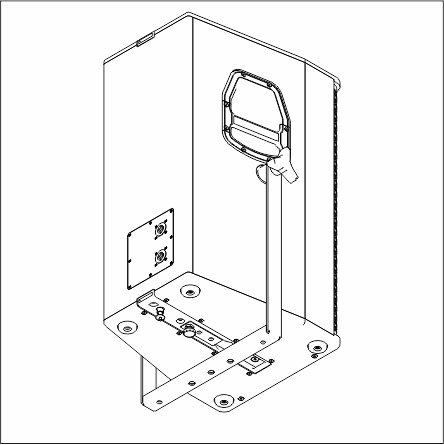

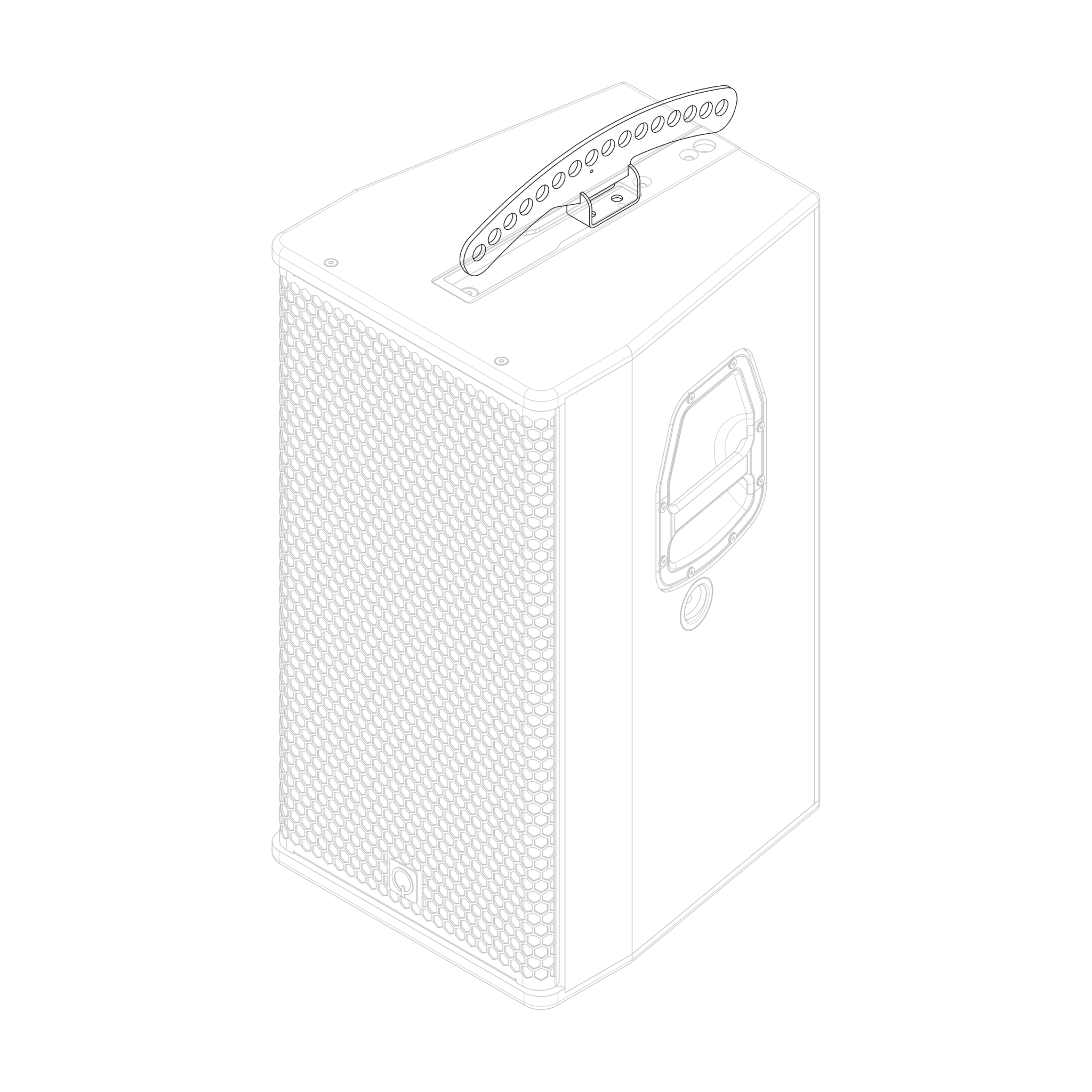

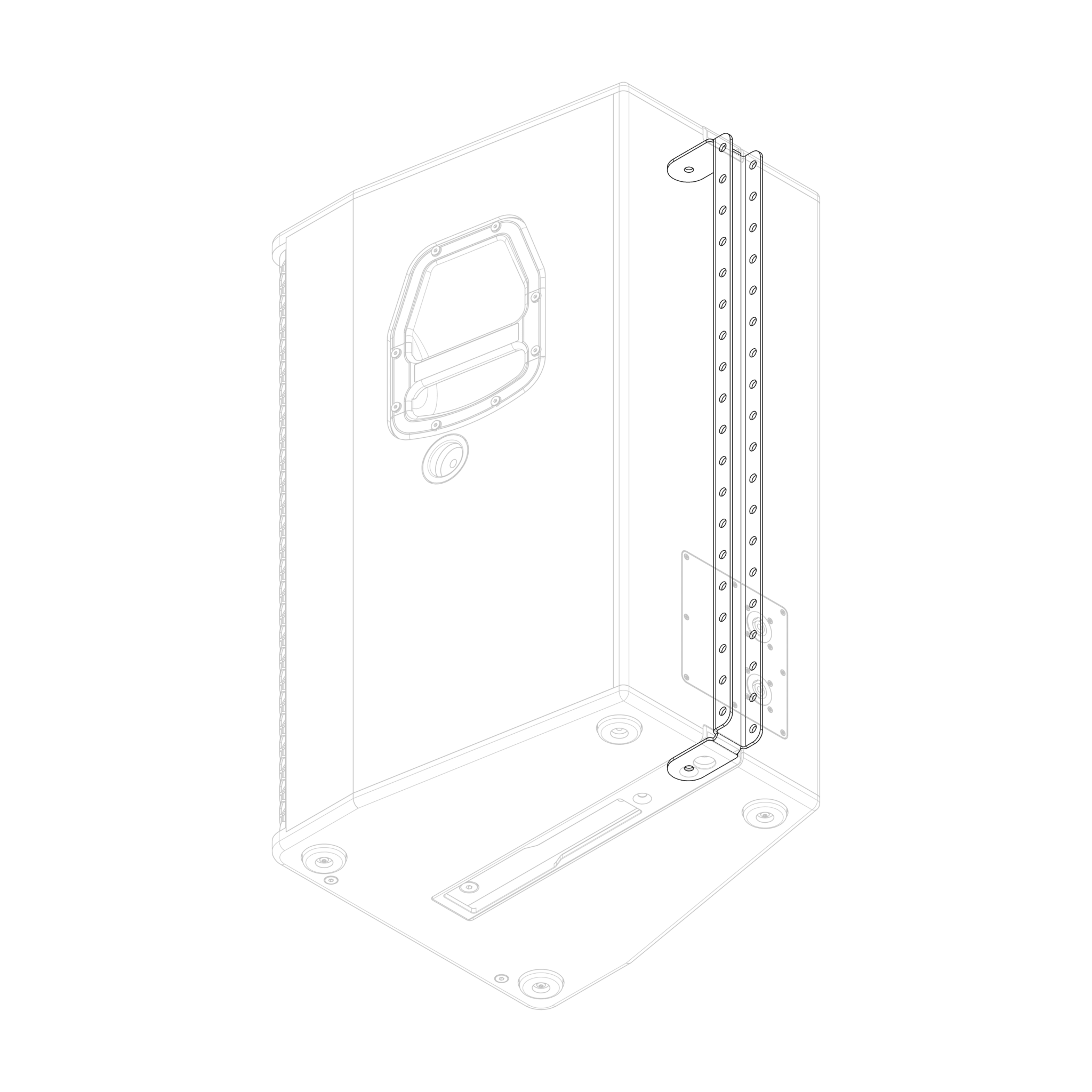

Rigging
  • slide-in frame
  • top bracket

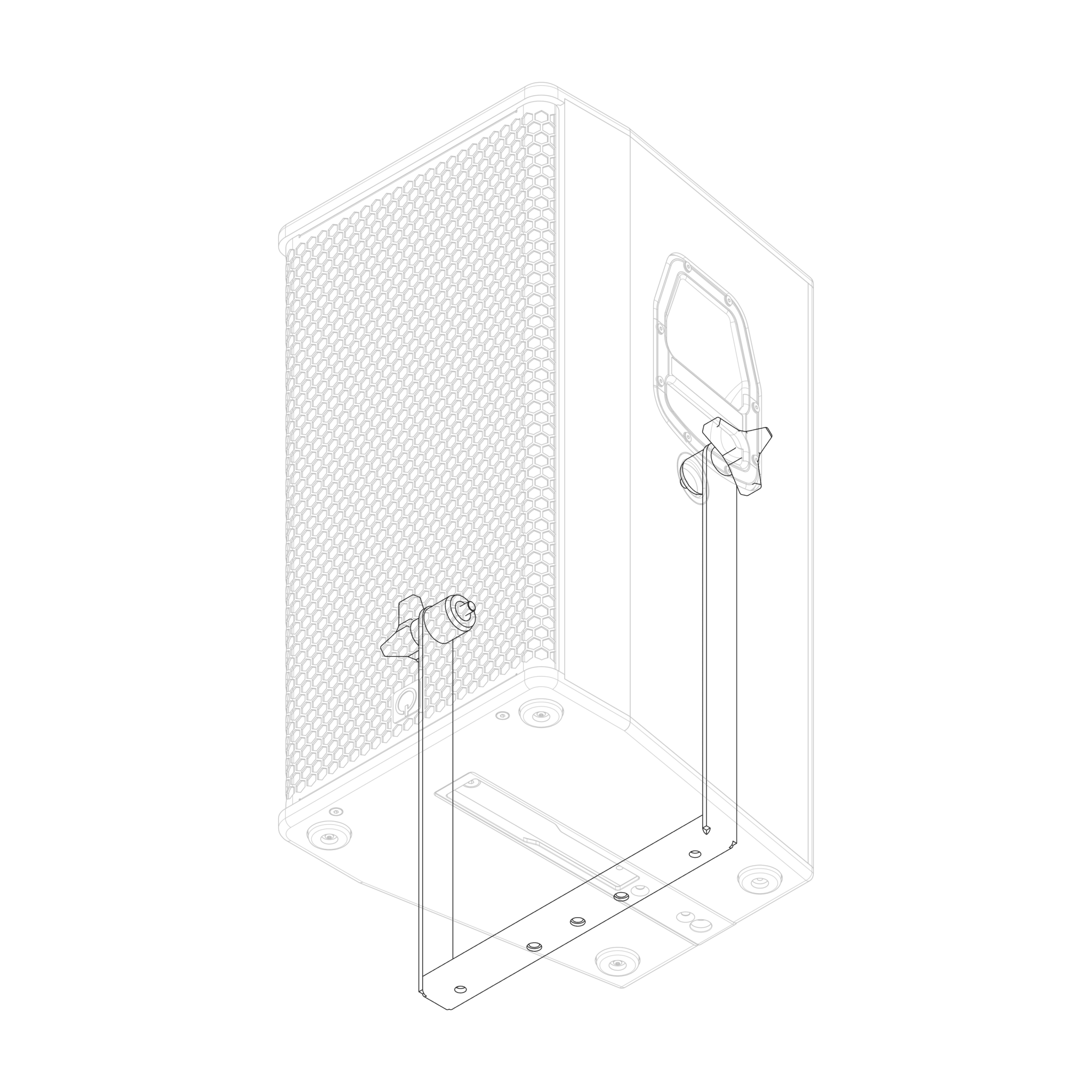

  • U-bracket
  • extra handles
