S12

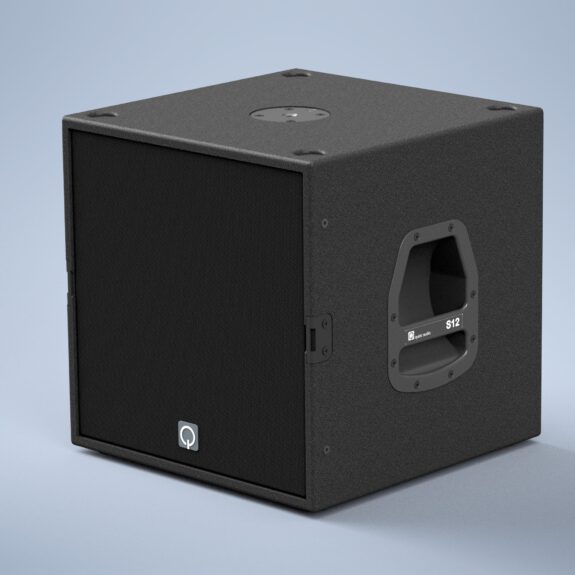

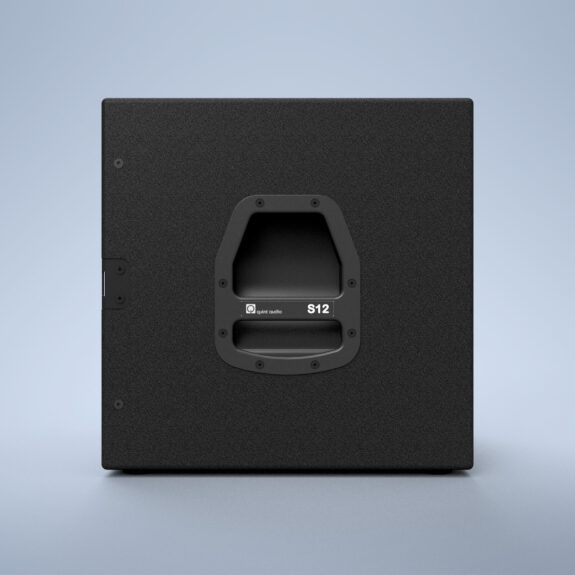

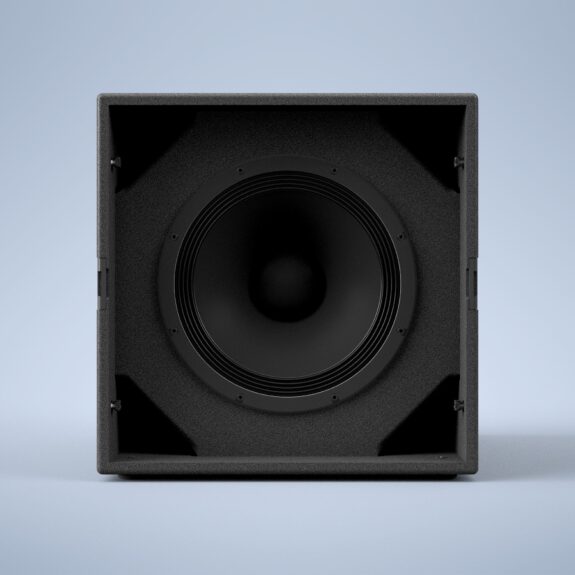

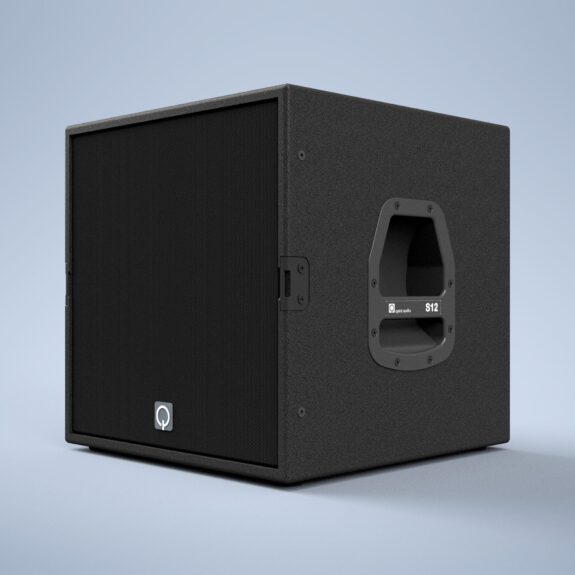

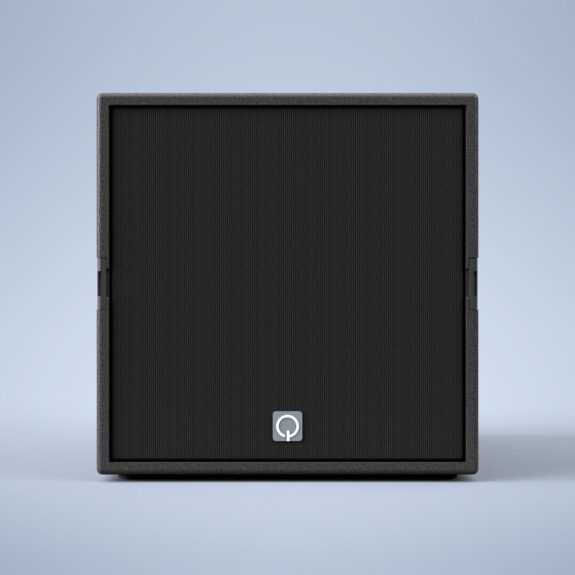

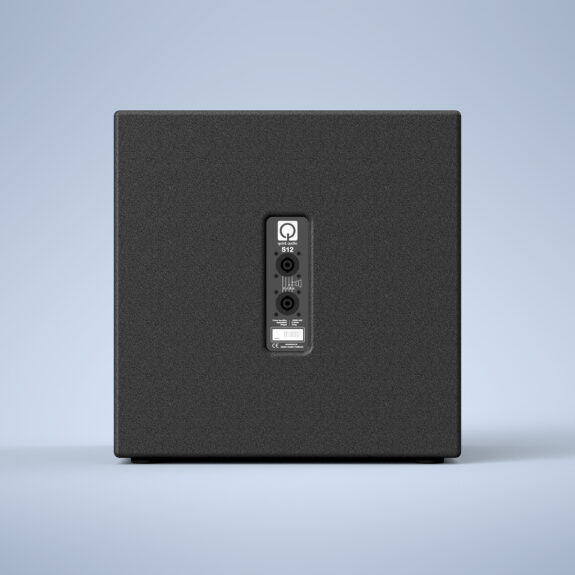

The Quint Audio S12 is a 12″ ND sub woofer with a linear bass reflex tuning to be used as (sub)bass extension of Quint Audio loudspeakers

Specifications
Specifications
Description

The Quint Audio S12 is the perfect sub for use in combination with smaller tops, like for instance Quint Audio U6, U8 and U26. This brave  little sub has the same sound character as the S18 and S15 but is a lot smaller. Still, it has a program power of 2400W and a program SPL of a staggering 130dB. This is quite remarkable for a sub this tiny.

Like the whole S-series subs, this 1×12″ND   delivers a powerful bass which makes the S12 perfectly suitable for smaller PA-applications such as live combos’ and live theater.


Application area

Combo Sub
Small PA Sub
Bass Extension

Live Jazz
Live Pop
Clubs
Live Theater


Specifications
S12
12" bassreflex sub
none
1200W
2400W
8 Ohms
96 dB 1W/1m
130 dB 1m
136dB 1m
40 - 200Hz
omni
23 kg
450 x 450 x450 mm

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

Rigging
